NES Expansion Audio Board

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

NES Expansion Audio Board

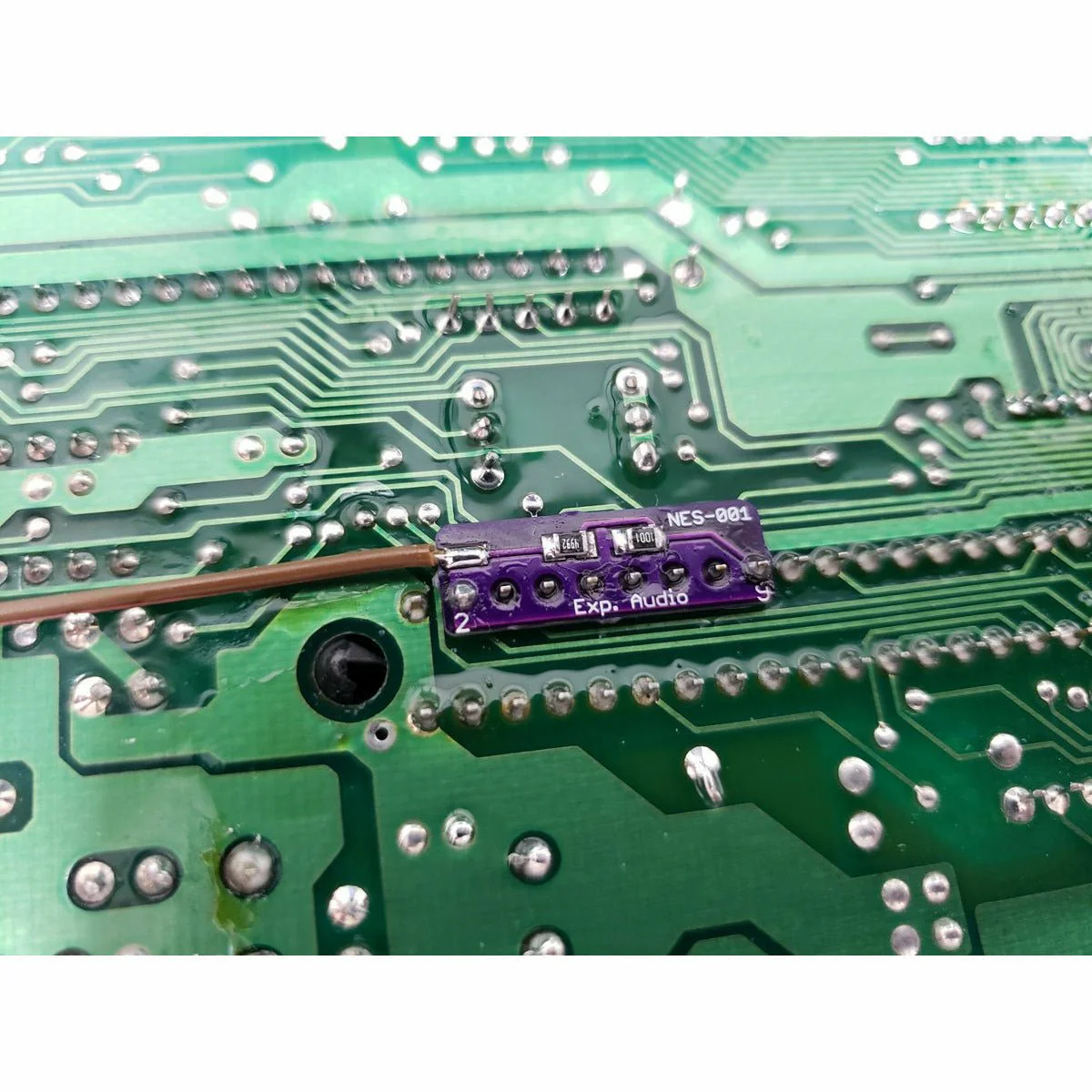

NES Front Loader - Stock (not RGB modded)

Use a short wire or component leg to jump the pad to pin 3

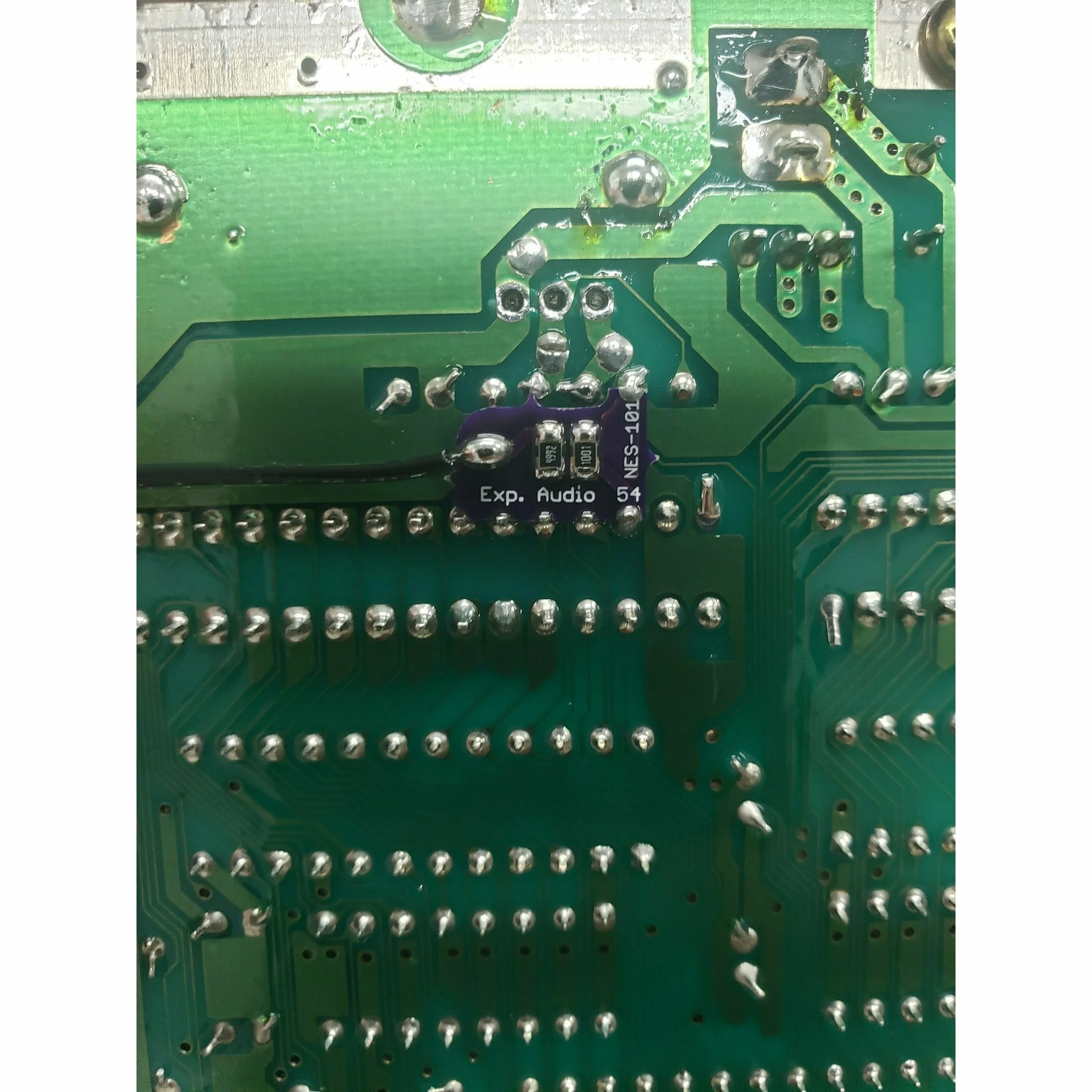

NES Top Loader - Stock (not RGB modded)

The Top-Loader doesn't have a real amplifier for audio, so you can try muxxing it into pin 1 or pin 2 of the CPU.

It was never designed for this, but it certainly won't harm anything.

NES Front & Top Loader - RGB Modded

Use a jumper wire to connect the expansion audio pad to the open via next to component J5 on the RGB board.

    This small interface is designed to allow easy acquisition of expansion audio from a real Famicom cartridge.
    Select Version
    From $11.99
    NES Expansion Audio Board—
    $11.99

    Product Information

    Shipping & Returns

    Description

    NES Front Loader - Stock (not RGB modded)

    Use a short wire or component leg to jump the pad to pin 3

    NES Top Loader - Stock (not RGB modded)

    The Top-Loader doesn't have a real amplifier for audio, so you can try muxxing it into pin 1 or pin 2 of the CPU.

    It was never designed for this, but it certainly won't harm anything.

    NES Front & Top Loader - RGB Modded

    Use a jumper wire to connect the expansion audio pad to the open via next to component J5 on the RGB board.

      This small interface is designed to allow easy acquisition of expansion audio from a real Famicom cartridge.
